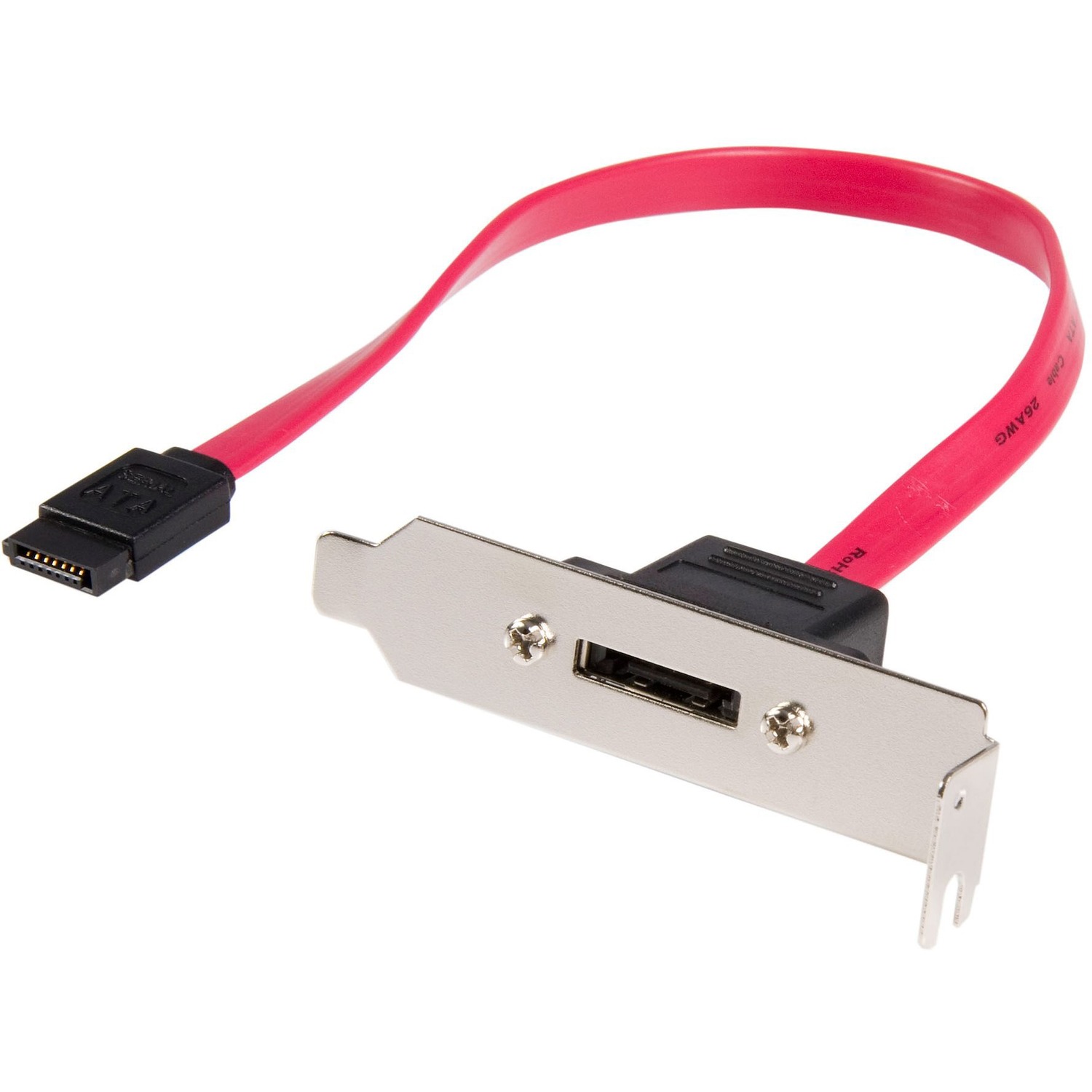

StarTech.com Low Profile SATA to eSATA Plate Adapter

Item #: STCESATAPLT1LP
1 ft eSATA/SATA Data Transfer Cable for SATA Controller, Computer, External Hard Drive, RAID Controller, Motherboard, Hard Disk Drive Enclosure, Storage Device - First End: 1 x 7-pin eSATA - Male - Second End: 1 x 7-pin SATA 3.0 - Female - 6 Gbit/s - Red - 1 Each

  • 1x SATA Receptacle
  • 1x eSATA Plug
  • Supports full SATA 3.0 6Gbps bandwidth
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
ESATAPLT1LP
Manufacturer Website Address
https://www.startech.com
Brand Name
StarTech.com
Product Model
ESATAPLT1LP
Product Name
Low Profile SATA to eSATA Plate Adapter
Marketing Information

The ESATAPLT1LP Low Profile SATA to eSATA plate adds external data support to any existing Serial ATA controller, allowing you to connect external SATA (eSATA) storage to a computer. With support for data transfer rates of up to 6Gbps, this external SATA plate allows you to take advantage of the increased data integrity provided by external hard drives or RAID devices that support eSATA connections.

The adapter plate can be mounted to the rear panel of the computer case, providing straightforward eSATA to SATA connections and allowing users to connect their eSATA device (hard drive enclosure, etc.) to the provided eSATA port which is an extension of the motherboard SATA data connector.

Constructed of only top quality materials and designed for optimum performance, and reliability the ESATAPLT1LP is backed by our lifetime warranty.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity
1 Each
Product Type
Data Transfer Cable
Catalog
Catalog Page
Technical Information
Cable Type
eSATA/SATA
Cable Length
1 ft
Connector Type on First End
eSATA - Male
Connector on First End Details
1 x 7-pin eSATA - Male
Connector Type on Second End
SATA 3.0 - Female
Connector on Second End Details
1 x 7-pin SATA 3.0 - Female
Device Supported
  • SATA Controller
  • Computer
  • External Hard Drive
  • RAID Controller
  • Motherboard
  • Hard Disk Drive Enclosure
  • Storage Device
Data Transfer Rate
6 Gbit/s
Physical Characteristics
Color Family
Red
Product Color
Red
Jacket Material
Polyvinyl Chloride (PVC)
Weight (Approximate)
0.07 lb
Shipping Height
8.90"
Shipping Width
0.71"
Shipping Weight (Approximate)
1.28 oz
Miscellaneous
Environmentally Friendly
Yes
Country of Origin
China
Lifetime
